Features:
Wide Band Operation
Vertically and Horizontally Polarized
Extremely Rugged for Extreme Environments
Parabolic Series

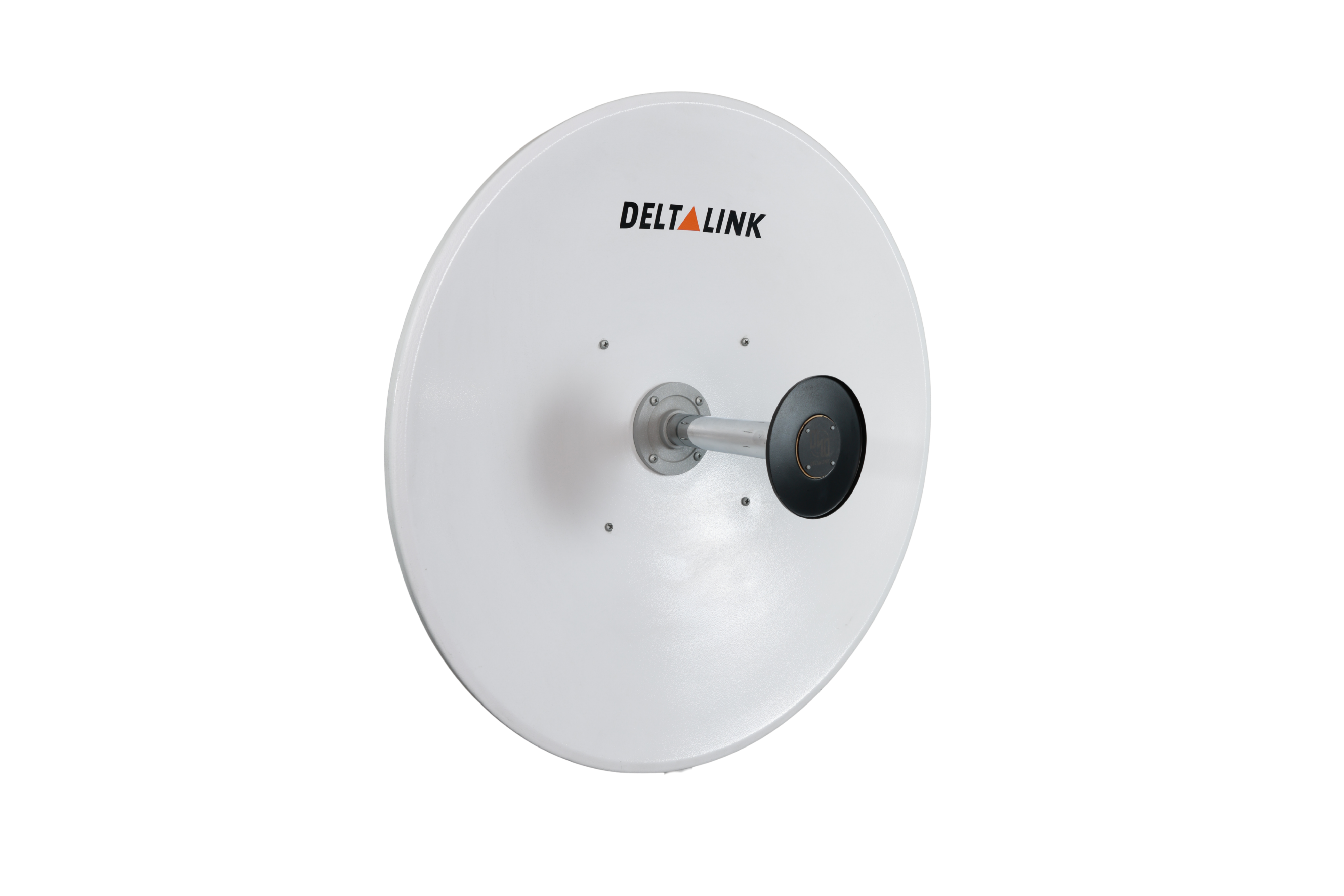

Deltalink ANT-5531N – Dual Polarity Parabolic Dish 4.8 – 6.1 GHz, 31 dBi
Parabolic Dish high efficient antenna, applicable for medium and long range MIMO solutions specially for PTP applications over 30Km in LOS situations
The ANT-5531N is a High quality Parabolic Dish with 31dBi Gain, applicable for long range MIMO solutions specially for PTP applications over 20Km in LOS situations.
Deltalink provide highly efficient Antennas Idle for MIMO solutions, designed for outdoor applications for PTP, PTMP and Mesh networks Specially for high throughput wireless backhauls.
Mechanical specification
Electrical specification
| 750 mm | Size/Diameter |
| 5.8 Kg | Weight(incl. bracket) |
| 130 Km/h | Wind Loading(Operating) |
| 200 Km/h | Wind Loading(Survival) |
| -50°C to 70°C | Operating Temperature |

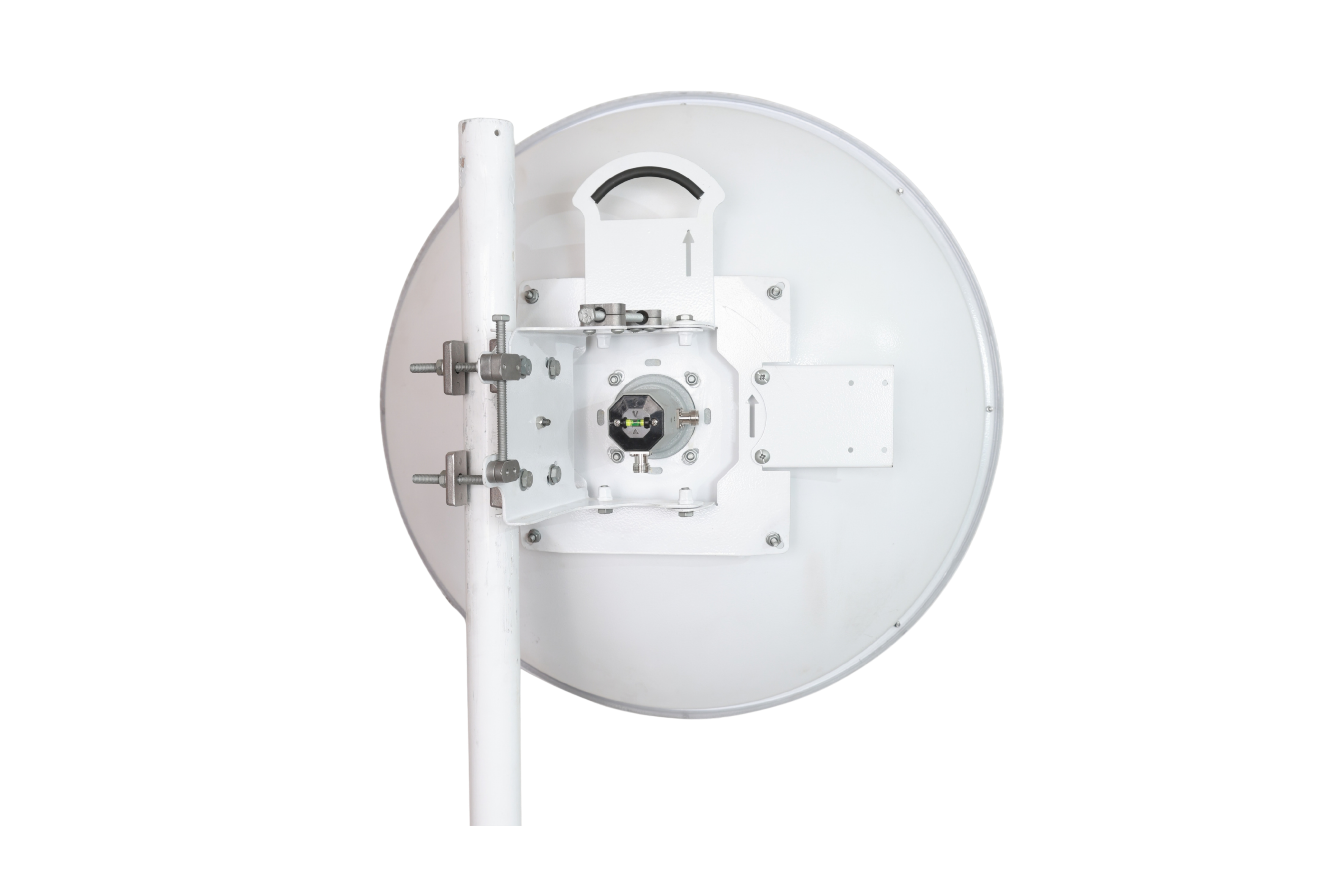

| Included/Pole Mount | Mounting Kit/Style |
| 25-60 mm | Pole Diameter |
| Accurate Pan & Tilt alignment | Additional Features |
| 4800 – 6100 MHz | Frequency Range |
| 31dBi | Gain |
| 3.5°(typ) | 3dB Beamwidth |
| 1.4:1(typ) | VSWR |
| 50 Ohms | Impedance |
| 25 W | Input Power |
| 2 x N-Female | Connector |
| ETSI EN 302.326-3 DN1-DN5 | Sidelobes |
| 36dB | Front to Back Ratio |
| 29 dB (max), 35 (typ) | Cross Polarization |
| 32 dB (max), 45 (typ) | Port to Port Isolation |
E + H Plane Beam Patterns
5.5 Ghz H-plane and E of H-plane
5.5 Ghz E-plane and H of E-plane
Antenna Gain Performance
Antenna Cross Polarity 4800-6100 Mhz
Antenna Gain 4800-6100 Mhz
Antenna Gain Performance
Antenna VSWR 4800-6100 Mhz
Antenna Port to Port Isolation 4800-6700 Mhz
General Information
Deltalink provide highly efficient Antennas Idle for MIMO solutions, designed for outdoor applications for PTP, PTMP and Mesh networks Specially for high throughput wireless backhauls
