Parabolic Series

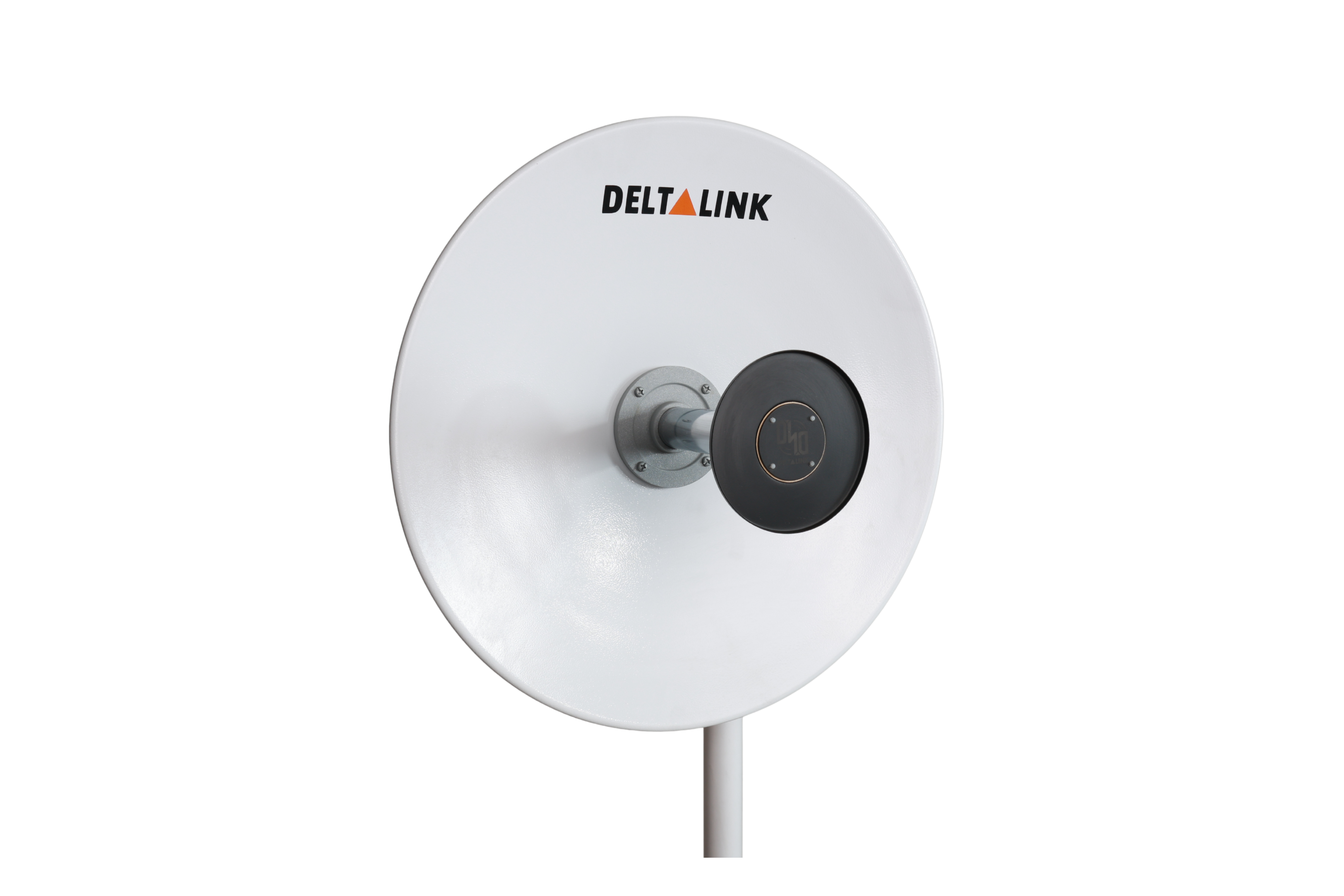

ANT-5527N – Dual Polarity Parabolic Dish 4.8 – 6.4 GHz, 27 dBi
Parabolic Dish high efficient antenna, applicable for medium and long range MIMO solutions specially for PTP applications over 30Km in LOS situations
The ANT-5527N is a High quality 27dBi Gain Parabolic Dish high efficient antenna, applicable for medium and long range MIMO solutions specially for PTP applications over 30Km in LOS situations
Deltalink provide highly efficient Antennas Idle for MIMO solutions, designed for outdoor applications for PTP, PTMP and Mesh networks Specially for high throughput wireless backhauls
:Features
Wide Band Operation
Vertically and Horizontally Polarized
Extremely Rugged for Extreme Environments
Mechanical specification
Electrical specification
| 550MM | Size/Diameter |
| 3.4Kg | Weight(incl. bracket) |
| 140Km/h | Wind Loading(Operating) |
| 200Km/h | Wind Loading(Survival) |
| -50°C to 70°C | Operating Temperature |

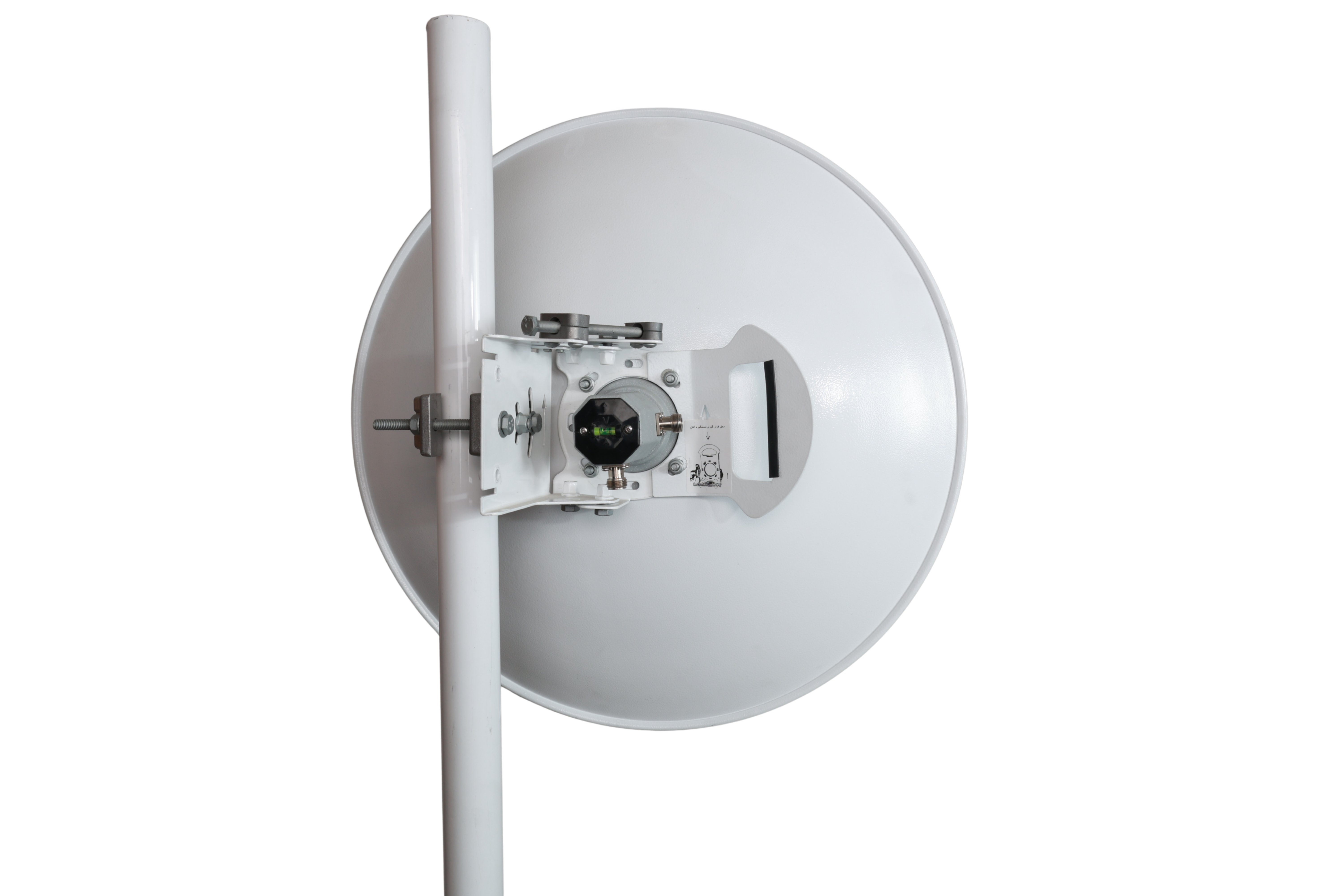

| Included/Pole Mount | Mounting Kit/Style |
| 25-60mm | Pole Diameter |
| Accurate Pan & Tilt alignment | Additional Features |
| 4800 – 6400 MHz | Frequency Range |
| 27dbi | Gain |
| (typ)5.0° | 3dB Beamwidth |
| (typ)1.4:1 | VSWR |
| 50Ohms | Impedance |
| 25W | Input Power |
| 2x N-Female | Connector |
| ETSI EN 302.326-3 DN1-DN5 | Sidelobes |
| 40db | Front to Back Ratio |
| 25db (max), 32 (typ) | Cross Polarization |
| 32db (max).45 (typ) | Port to Port Isolation |
E + H Plane Beam Patterns
5.5 Ghz H-plane and E of H-plane
5.5 Ghz E-plane and H of E-plane
Antenna Gain Performance
Antenna Cross Polarity 4800-6100 Mhz
Antenna Gain 4800-6100 Mhz
Antenna Gain Performance
Antenna VSWR 4800-6100 Mhz
Antenna Port to Port Isolation 4800-6100 Mhz
General Information
Deltalink provide highly efficient Antennas Idle for MIMO solutions, designed for outdoor applications for PTP, PTMP and Mesh networks Specially for high throughput wireless backhauls
